CO2 System for Planted Tanks:
Everything You Need to Know
In this article, we're going to discuss:
Why using is a CO2 System?
Welcome to our comprehensive guide on Aquarium CO2 Systems. If you’re looking to transform your aquarium into a lush underwater garden, you’re in the right place. An Aquarium CO2 System is the secret weapon for thriving plant life and a healthy aquatic ecosystem. In this guide, we’ll walk you through everything you need to know, from understanding the benefits to selecting and installing the perfect CO2 system for your aquarium.
Benefits of Using an Aquarium CO2 System
A well-designed Aquarium CO2 System can revolutionize your underwater world. By infusing your tank with the right amount of carbon dioxide, you’ll witness a remarkable boost in plant growth. This not only creates a visually stunning environment but also provides natural filtration and oxygenation. Additionally, a balanced CO2 level helps maintain optimal pH levels, ensuring the well-being of both plants and fish. Say goodbye to algae overgrowth and hello to a thriving, balanced ecosystem.
Types of Aquarium CO2 Systems
There are several types of Aquarium CO2 Systems to choose from, each catering to different needs and budgets. Pressurized CO2 Systems offer precise control and are suitable for larger tanks, while DIY CO2 Systems provide a cost-effective alternative for smaller setups.

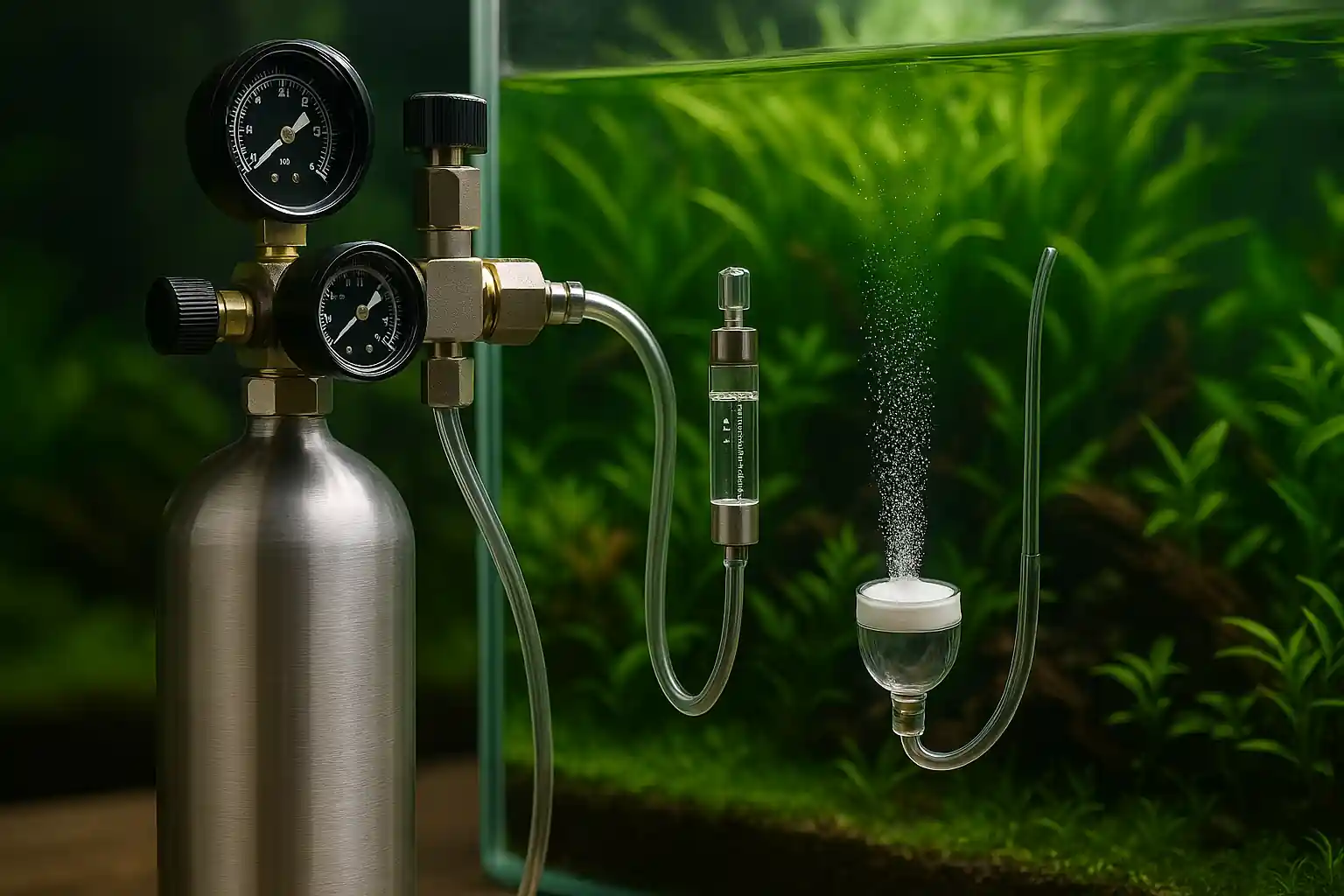

Main Components of a Aquarium CO2 System
1. CO2 Cylinder / Bottle
This is the metal container that holds compressed carbon dioxide.
It is available in a variety of sizes.
At a good injection rate, a 5lb cylinder will last around 6-8 months in a 25 gallon (~100 Litre) Aquarium. The cost to fill a CO2 Cylinder / Bottle varies depending on the size of the tank. But on average, it costs between $5 and $15 to get a full cylinder / bottle.
2. CO2 Regulator
This device controls the release of CO2 gas from the cylinder.
The solenoid is connected to a power outlet, and when power is applied to the solenoid, the regulator releases CO2.
The solenoid is simply a “on/off” valve that activates when the power supply is turned on.
A needle valve regulates the flow rate of the released CO2 gas.
There are usually two pressure gauges.
One shows the cylinder’s internal pressure (the one with the higher PSI markings) which shows if the cylinder is full or empty, while the other shows the output pressure.
Top 5 CO2 Regulator Brands
FZONE:
FZONE produces a variety of aquarium accessories, including CO2 regulators. They offer budget-friendly options with features like bubble counters and integrated solenoids. Check out this one for example: https://amzn.to/45l1P0J
CO2Art:
A well-regarded brand known for its high-quality CO2 equipment, including regulators, diffusers, and complete CO2 systems. They offer a range of models with various features to suit different aquarium setups.
CO2 Art PRO-SE Series: https://amzn.to/4aTOYDT
AQUATEK:
AQUATEK is recognized for producing durable and dependable CO2 regulators. Their regulators are designed with precision control and come with safety features like built-in solenoids and bubble counters.
GLA (Green Leaf Aquariums):
GLA is known for its premium CO2 equipment, including regulators and diffusers. They focus on providing precise and reliable CO2 control for planted tanks.
UP Aqua:
UP Aqua offers a range of aquarium equipment, including CO2 regulators. Their regulators are known for their affordability without compromising on quality.
3. Diffusor
The dissolution rate of CO2 in aquarium water is greatly influenced by the quality of the membrane.
The finer a membrane’s pores, the better it can produce micro-fine bubbles.
The surface-to-volume ratio of smaller CO2 bubbles is greater than that of larger bubbles.
As a result, the gas dissolves faster in water.
A finer atomization, on the other hand, necessitates a higher working pressure in the CO2 system (often 2 bar are recommended). You should ensure that the CO2 system components , such as the pressure reducer, hose, and check valve, are designed to withstand high pressure.
The finer a membrane’s pores, the better it can produce micro-fine bubbles.
The surface-to-volume ratio of smaller CO2 bubbles is greater than that of larger bubbles.
As a result, the gas dissolves faster in water.
A finer atomization, on the other hand, necessitates a higher working pressure in the CO2 system (often 2 bar are recommended). You should ensure that the CO2 system components , such as the pressure reducer, hose, and check valve, are designed to withstand high pressure.
There are different kinds of diffusor / atomizer.
Diffusers made of acrylic glass, plastic, or stainless steel, as well as inline atomizers and higher quality glassware, are common.
CO2 diffusers for Small Tanks (Up to 10 Gallons):
ISTA Mini Ceramic Cone Diffuser
Ideal for nano tanks, this ceramic diffuser provides fine CO2 bubbles for efficient absorption.
UP Aqua Inline Diffuser
Designed for small tanks, this inline diffuser is compact and effective at diffusing CO2.
CO2 diffusers for Medium Tanks (10 to 50 Gallons):
Aquario Neo Co2 Diffuser
Sleek and sturdy, the Neo Diffuser is made from transparent acrylic and is not easily broken when performing aquarium maintenance. A really good one, with different sizes available. You can buy it here:
https://amzn.to/3VkkVzl
AQUATEK CO2 Diffuser Mini
This compact diffuser is suitable for tanks up to 50 gallons and provides efficient CO2 diffusion.
Large Tanks (50+ Gallons):
CO2ART Inline CO2 Atomizer Diffusor
This inline diffuser is suitable for larger tanks, ensuring effective CO2 distribution.
Other Components You Will Need for Your CO2 Aquarium System:
Solenoid Valve
The Solenoid Valve allows CO2 to flow through it or not.
A relatively simple piece of equipment that can be used with any CO2 system.
The most common way to use a solenoid valve is to connect it to a timer (Read more about Timing in this Articles Heading “Timing”) so that the CO2 is only released when the light’s are turned on (e.g. plants are on photoperiod).
CO2 Aquarium Hose
Self explained this is the tube from your CO2 Cylinder / Bottle into your Tank. For efficient use make sure the tube fits perfect so no co2 escapes. Here is a good one from FZONE: https://amzn.to/3Xgw3Qq
CO2 Drop Checker
The CO2 Drop Checker is usually glassware.
Important when using a Drop Checker: CO2 Drop Checker Indicator Fluid
The Fluid for the Drop Checker which indicates if their is the perfect amount of CO2 in the water column. The Drop Checker without Fluid is useless.
Sometimes you can buy it in combination, just like here: Glass CO2 Drop Checker with Solution
Installation and Setup Tips
Proper installation and setup are crucial for the success of your Aquarium CO2 System. Start by positioning the CO2 diffuser near a high flow area to ensure even distribution. Adjust the regulator to achieve the desired bubble count, typically 1-2 bubbles per second. Monitor pH levels regularly and fine-tune the system as needed. Remember, consistency is key, so establish a routine for maintenance and monitoring to keep your aquatic environment thriving.
3 Ways to Monitor Your CO2 Levels
1. Using a Drop Checker
Probably the easiest way to monitor your CO2 levels. It contains a solution that changes color based on the concentration of CO2 in the water, providing a visual indication of whether CO2 levels are optimal for plant growth or need adjustment.
How To Install the CO2 Drop Checker
1. Fill the reservoir halfway with CO2 drop checker indicator solution and invert your drop checker.
2. Submerge the drop checker in your aquarium water with the suction cup and stick it to the aquarium glass sides.
3. The color of the solution will change depending on the concentration of CO2 in the water.
4. Check the color.
Blue indicates insufficient CO2 concentration, Yellow indicates excessive CO2 concentration (dangerous levels for fish), and Green indicates optimal levels for plants and fish.
The color is delayed by 1-2 hours.
So you’re reading the CO2 concentration from about 1-2 hours ago.
5. Adjust your CO2 bubble rate using your regulator based on your reading.
Wait another 2 hours for the CO2 concentration to change before rechecking your readings.
2. Check pH/KH
Check the pH/KH of the tank water before CO2 injection starts. This is the baseline pH/KH value. As CO2 injection starts, the pH of the tank water will drop as a portion of the injected CO2 is converted to carbonic acid. With the risk of oversimplification, a good starting target would be attaining CO2 in the region of 20ppm -35ppm (parts per million or mL/L). This can be a process that takes quite long to play out if you want an accurate gauge of CO2 levels. The way to gauge this is through measuring the change in pH/KH as a proxy for the amount of CO2 dissolved, as described in more detail here. This does require the ability to test pH and KH which is a necessary investment for newer aquarists. Generally, if your KH is between 1 to 10, aiming for a 1 point drop in pH (from when CO2 injection is off to peak saturation) will put you at good levels.
3. Blubble Counter
If using a bubble counter – start at one bubble per second per 20 gallons of tank volume, then slowly tune upwards while measuring the pH drop. (It can take a few hours for the pH to drop fully and stabilize).
Note:
If livestock is already present while CO2 is being adjusted, livestock must be observed closely for signs of excessive CO2 saturation. There can be a significant lag effect between CO2 adjustment and the time it takes for water to be saturated.
Maintenance and Troubleshooting
To ensure your Aquarium CO2 System continues to operate optimally, regular maintenance is essential. Clean the diffuser and tubing periodically to prevent clogs, and replace any worn-out parts promptly. If you encounter issues such as inconsistent CO2 distribution or abnormal pH levels, refer to our troubleshooting guide. Common problems and solutions are outlined to help you address any challenges that may arise.
Conclusion
Congratulations on taking the first step towards creating a vibrant, healthy aquarium ecosystem with an Aquarium CO2 System. The benefits are boundless, from lush plant growth to balanced pH levels. We hope this guide has equipped you with the knowledge and confidence to embark on this exciting journey. If you have any questions or need further guidance, feel free to reach out. Here’s to a flourishing underwater paradise!
FAQ - Most Asked Questions about Aquarium CO2 System
What is an Aquarium CO2 System?
An Aquarium CO2 System is a setup designed to introduce controlled amounts of carbon dioxide (CO2) into a planted aquarium. This aids in photosynthesis, benefiting the growth of aquatic plants and promoting a healthy, balanced ecosystem.
Why do I need a CO2 System for my Aquarium?
A CO2 system is particularly beneficial for planted aquariums, as it provides an additional source of carbon dioxide for plants to utilize during photosynthesis. This leads to improved growth, vibrant colors, and a more lush and balanced underwater environment.
How does a CO2 System work?
A CO2 system typically consists of a CO2 cylinder or tank, a regulator, a solenoid valve, a diffuser or reactor, and tubing. The regulator controls the pressure of the CO2 gas released from the tank, while the solenoid valve regulates when the CO2 is introduced into the aquarium. The diffuser or reactor disperses the CO2 into fine bubbles, ensuring efficient absorption by the plants.
What are the benefits of using a CO2 System in my Aquarium?
The benefits of a CO2 system include accelerated plant growth, enhanced coloration, improved oxygen production, and better competition against algae. It also helps maintain a stable pH level and supports a healthier and more natural ecosystem for fish.
Is a CO2 System suitable for all types of Aquariums?
While a CO2 system is highly beneficial for planted aquariums, it may not be necessary for non-planted tanks or those with low light, low-tech setups. High-tech planted tanks with high light levels and nutrient-rich substrates tend to benefit the most from CO2 supplementation.
How do I determine the CO2 levels in my Aquarium?
You can measure CO2 levels using a drop checker, which contains an indicator solution that changes color based on the CO2 concentration. Additionally, pH monitoring and observation of plant growth and fish behavior can provide indirect indicators of CO2 levels.
Can excessive CO2 harm my Fish or Invertebrates?
Yes, excessive CO2 levels can be harmful to fish and invertebrates. If CO2 levels are too high, it can lead to reduced oxygen levels in the water, potentially causing stress or harm to aquatic life. It’s crucial to carefully monitor and regulate CO2 levels to maintain a healthy balance.
How do I set up a CO2 System in my Aquarium?
To set up a CO2 system, you’ll need a CO2 tank, a regulator, a solenoid valve, a diffuser or reactor, and tubing. Connect the regulator to the CO2 tank, attach the solenoid valve and diffuser, and then carefully adjust the CO2 flow rate. It’s important to start with a low flow rate and gradually increase it while monitoring the pH levels.
How often should I inject CO2 into my Aquarium?
CO2 injection should coincide with the light cycle in your aquarium. It’s typically recommended to start CO2 injection an hour before the lights turn on and turn it off an hour before light’s turn off. This helps ensure that plants have access to CO2 when they are actively photosynthesizing.
